Description

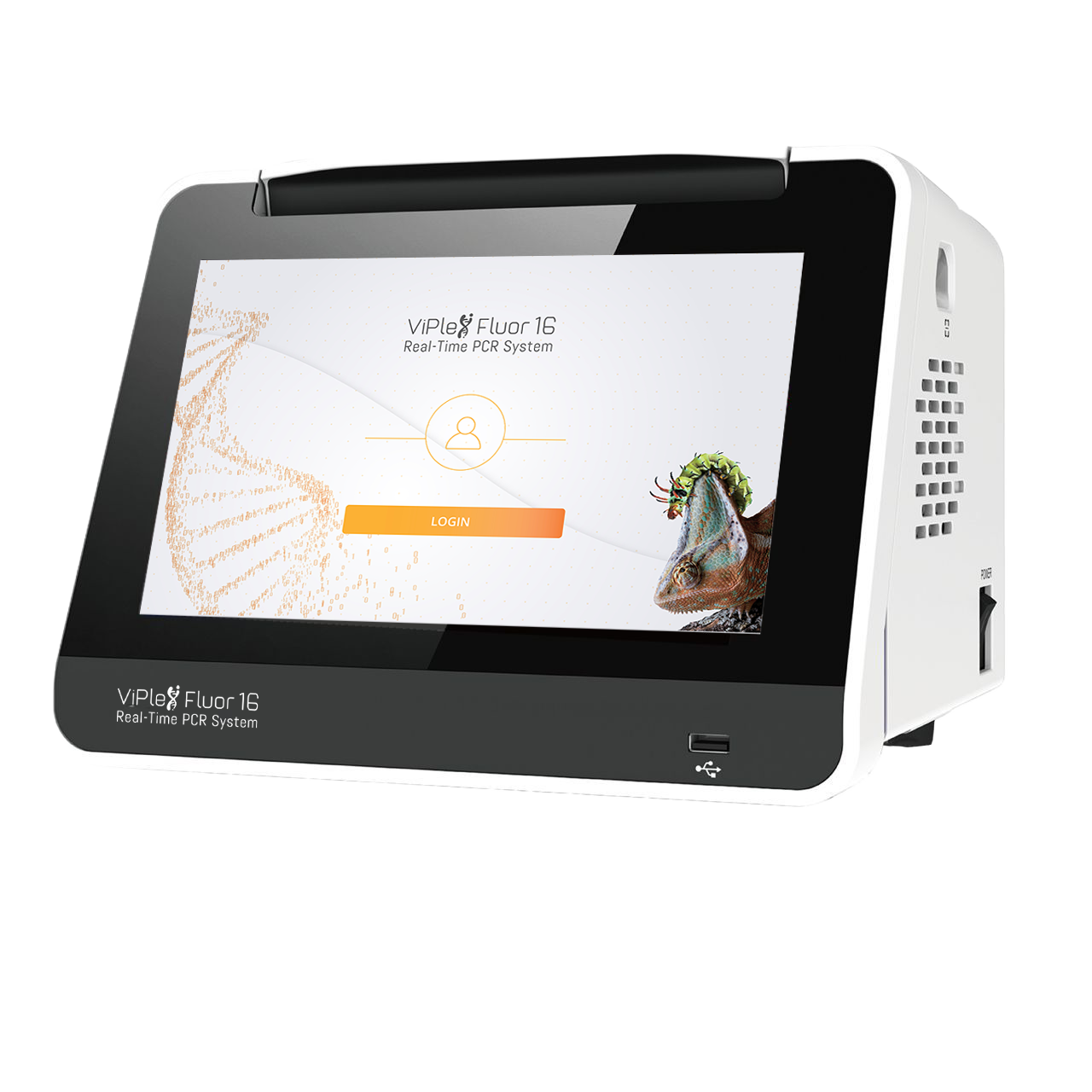

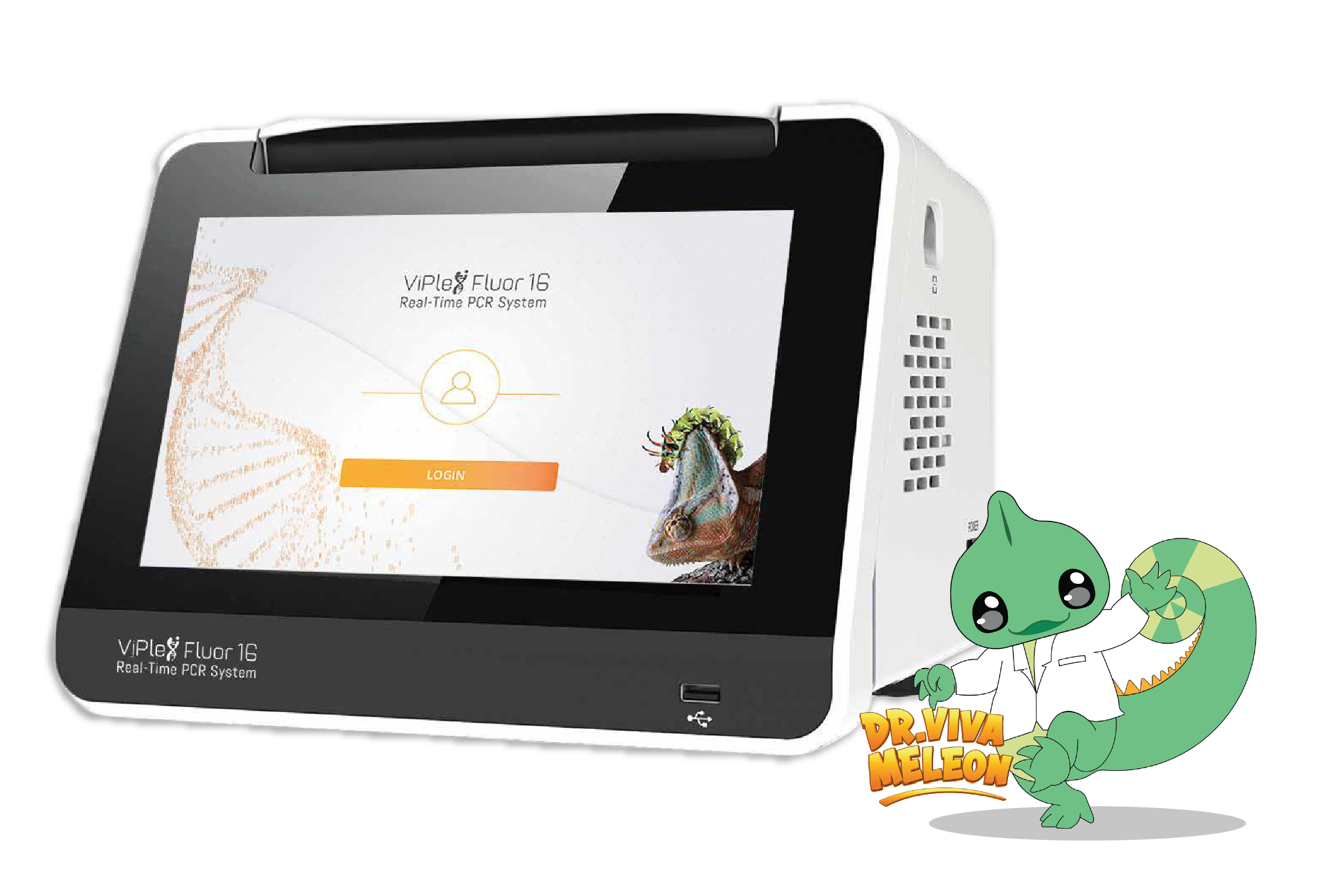

ViPlex Fluor16 Real-time PCR System is a mini, portable and robust real-time PCR platform designed for accurate, sensitive, and reproducible nucleic acid quantification. Utilizing advanced fluorescence detection and precise thermal control, the system supports reliable amplification and real-time analysis across a wide range of research and field applications, delivering fast and dependable results wherever testing is required.
Designed with mobility and efficiency in mind, the ViPlex Fluor16 features a compact, space-saving footprint that fits seamlessly into crowded labs, shared workspaces, and satellite research units. Its lightweight build makes it easy to move between laboratories or bring directly to the field, giving researchers true flexibility wherever testing is needed. Even with its small size, the ViPlex Fluor16 delivers outstanding precision in thermal control and highly stable fluorescence detection; providing reliable real-time PCR performance on par with full-size benchtop systems.
Features
|
Ideal for small labs, point-of-care settings, and mobile use. |
Effcient throughput for medium to low-sample volume workflows. |
|
Sensitive & reliable uorescence measurement for accurate quantification with 4 channels |
10’’ HD Large touchscreen control and built-in analysis software for easy setup and data visualization. |
 Dual Temperature Control Modes
Supports temperature control in block or tube modes, suitable for exibility in protocols. |
Portable & Compact Design
16-Well Capacity
High Sensitivity Fluorescence Detection
Intuitive Interface
Applications
 |
|
Technical Data
| Specifications | ViPlex Fluor16 Real-Time PCR System |
|---|---|
| Sample capacity | 2 lines x 8 wells x 0.2ml (single block) |
| Consumables | Clear 0.2ml flat PCR tubes / 8-tube flat PCR strips |
| Reaction volume | 5 - 100μl |
| Dynamic range | 1-1010 copies |
| Detector | High sensitivity photoelectric detector |
| Temperature control technology | Marlow customized Peltier |
| Block material | Aluminium |
| Ramp rate (max.) | 5°C/s |
| Temperature uniformity | ±0.25°C |
| Temperature accuracy | ±0.25°C |
| Temperature range | 0 - 100°C (resolution 0.1°C) |
| Hot lid temperature | 30 - 110°C (adjustable, default 105°C) |
| Temperature control | Block/tube |
| Multiplexing | F1: FAM™/SYBR Green F2: HEX™/VIC®/JOE™/TET™ F3: ROX™/TEXAS-RED® F4: Cy5™/ CY5.5™/ LC® RED |
| Excitation wavelength | 460 – 650nm |
| Emission wavelength | 500 – 720nm |
| Display | 7-inch color TFT touch screen, 1280 x 800 pixels |
| Communication ports | USB 2.0 |
| Power supply | DC15V 255W |
| Voltage | 220VAC 50Hz |
| Dimension (W x D x H) | 300 × 267 × 198 mm |
| Weight | 6.7 kg |
Ordering Information
| Catalog No | Description |
|---|---|
| MC40324 | ViPlex Fluor Real-time PCR System, 2 x 16 x 0.2ml block, 4 channels |
