GF-1 Soil Sample DNA Extraction Kit

Description
The GF-1 Soil Sample DNA Extraction Kit is designed for the rapid and efficient purification of bacteria DNA from soil samples without the need for precipitation or organic extraction. The kit uses a high pure specially-treated silica-based material fixed into a column to efficiently bind DNA in the presence of high salt. The kit applies the principle of a minicolumn spin technology and the use of optimized buffers to ensure that only DNA is isolated while cellular protein, humic acid, metabolites, salts and other low molecular weight impurities are removed during the subsequent washing steps. High quality DNA eluted in low salt buffer or water is ready to use in downstream applications such as restriction enzyme digestion, PCR and other manipulations.

Features

  • No organic-based extraction required.
  • Highly pure DNA ready to use for routine molecular biology applications such as PCR.

Kit Components

  • GF-1 DNA Binding Columns
  • Collection tubes
  • Glass Beads
  • Buffer SL1
  • Buffer SL2
  • Buffer SB
  • SPW Wash Buffer 1
  • SPW Wash Buffer 2
  • Elution Buffer
  • Handbook

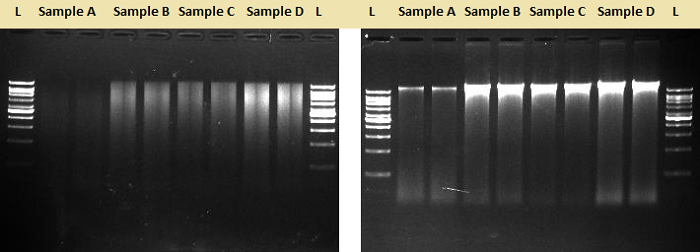

Figure: Gel photos show genomic DNA extracted from different soil samples using old version of GF-1 Soil Sample DNA Extraction Kit (left) and improved version of GF-1 Soil Sample DNA Extraction Kit (right). The improved version of Soil Sample Extraction Kit extracts genomic DNA with better yield as well as better purity (refer to OD reading). The improved version of kit has shorten the extraction time with no organic-based extraction required

OD reading (gel photo-left)
concentration 260/280 260/230
Sample A 1.79ng/ul 2.90 0.24
1.82ng/ul 2.91 0.21
Sample B 5.50ng/ul 2.21 1.05
5.77ng/ul 2.20 1.05
Sample C 2.66ng/ul 1.83 1.56
2.89ng/ul 1.85 1.54
Sample D 6.50ng/ul 2.03 1.35
6.66ng/ul 2.00 1.34
OD reading (gel photo-right)
concentration 260/280 260/230
Sample A 7.9ng/ul 2.07 0.21
7.35ng/ul 2.07 0.22
Sample B 20.72ng/ul 1.87 1.34
20.56ng/ul 1.80 1.35
Sample C 16.74ng/ul 1.77 1.19
17.16ng/ul 1.80 1.19
Sample D 34.50ng/ul 1.75 0.47
33.21ng/ul 2.01 0.44

Ordering Information

Catalog No Description Pack Size
GF-SD-005 GF-1 Soil Sample DNA Extraction Kit 5 preps
GF-SD-025 GF-1 Soil Sample DNA Extraction Kit 25 preps

Download
Manual

GF-1 Soil Sample DNA Extraction Kit

Comparison Test Report

GF-1 Soil Sample DNA Extraction Kit

Publication
This Product Has Been Used In:

Pongsilp, N., et al (2012)Genotypic Diversity among Rhizospheric Bacteria of Three Legumes Assessed by Cultivation-dependent and Cultivation-independent Techniques World Journal of Microbiology and Biotechnology. ProQuest. 28, p. 615-626.
